At Rayko Steel, we know that every great structure depends on how its parts connect. A building is only as strong as its joints, and a piping system is only as reliable as its connections. This is where the stainless steel flange—a seemingly simple component—becomes an unsung hero of modern engineering. More than just a connector, a flange is the vital link that ensures safety, reliability, and performance across the most demanding industrial landscapes.
Think of a flange as a high-strength ring or plate with a meticulously drilled perimeter of bolt holes. Its primary purpose is to connect pipes, valves, pumps, and other equipment to form a complete, leak-proof piping system. Two flanges are joined together with bolts, and a gasket is compressed between them to create a secure seal. This design makes them essential for any system requiring the transport of fluids, gases, or even dry materials under pressure.
The choice of stainless steel is fundamental to a flange's performance. By alloying iron with chromium, we create a material with a natural "passive layer" that resists rust and corrosion. This ensures a long-lasting, durable connection even in harsh environments.
The most common stainless steel grades we use at Rayko Steel are 304/304L and 316/316L, each offering distinct advantages. Grade 304 is the versatile workhorse, providing excellent corrosion resistance for most general industrial applications. However, when facing more aggressive conditions—such as exposure to chlorides in marine environments or harsh chemicals—the molybdenum-enhanced 316/316L grade provides superior protection, ensuring the flange's integrity and the system's safety.

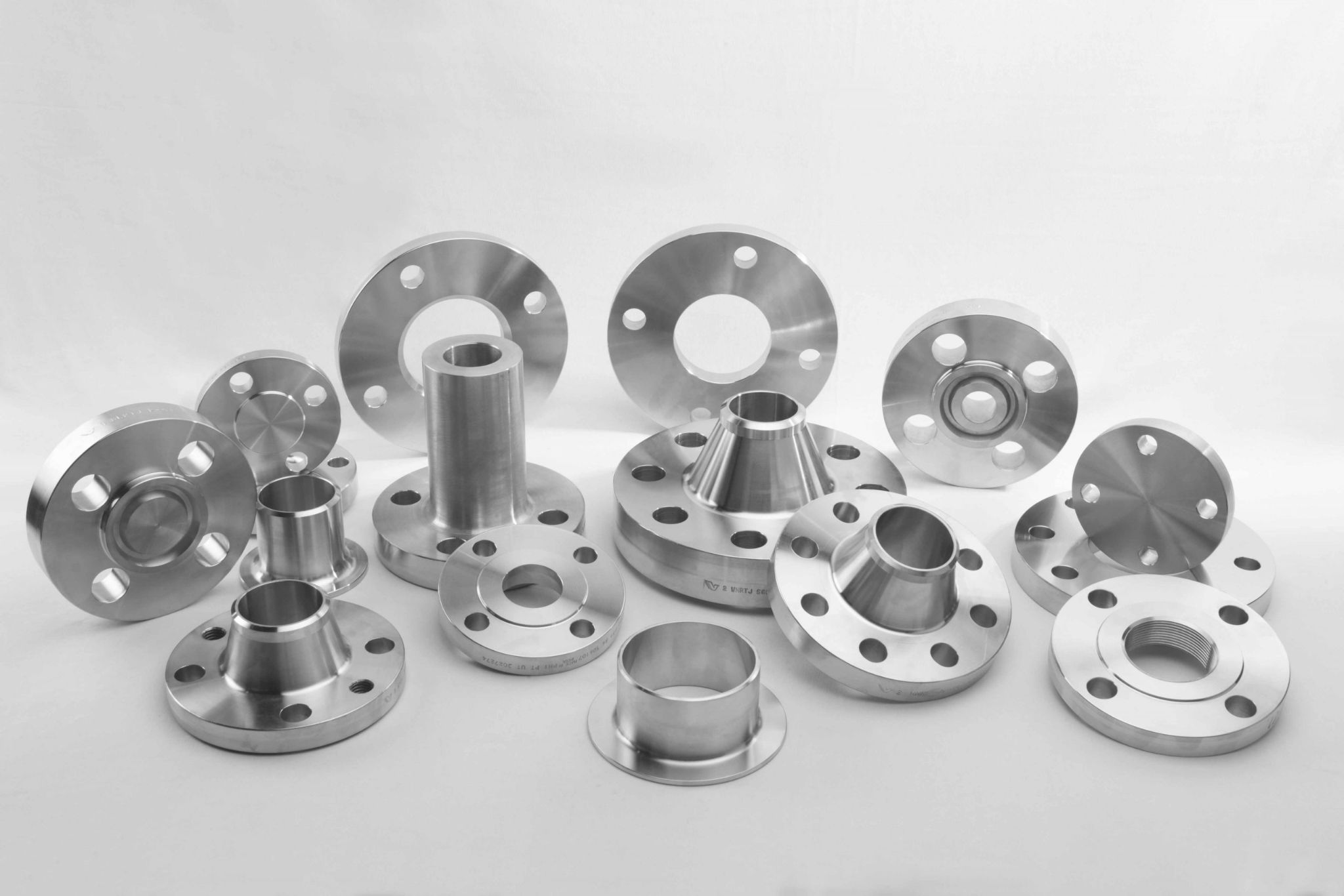

A major advantage of flanges is their versatility. Different designs cater to specific pressure, temperature, and application requirements. Here are some of the most common types we offer at Rayko Steel:
Weld Neck Flange: Recognized by its long, tapered hub, this type is butt-welded to the pipe. The hub distributes stress effectively, making it the ideal choice for high-pressure and high-temperature systems where reliability is paramount.
Slip-On Flange: This simple, cost-effective flange is slipped over the pipe and then welded both inside and outside. It is a popular choice for lower-pressure applications and general use.
Blind Flange: This is a solid plate with no center hole. Its sole purpose is to seal the end of a piping system or a pressure vessel opening, providing easy access for inspection and maintenance.
Socket Weld Flange: This flange features a socket into which the pipe is inserted and then fillet-welded around the top. It is primarily used for smaller diameter, high-pressure piping systems.
Threaded Flange: As the name suggests, this flange has tapered internal threads. It can be screwed onto a pipe with matching external threads, allowing for connection without the need for welding, ideal for low-pressure systems or where welding is not feasible.
Lap Joint Flange: This versatile flange is used with a "stub end." The flange itself is not welded to the pipe but slips over it and is free to rotate. This makes it perfect for systems that require frequent dismantling for cleaning or inspection.
Specification Typical Parameters Standards ANSI/ASME B16.5, DIN, EN-1092, BS, JIS Common Grades 304, 304L, 316, 316L Size Range ½” (15 NB) to 24” (600 NB) and larger Pressure Classes 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Face Types Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Stainless steel flanges are the silent workhorses in countless industries. Their ability to provide secure, leak-proof connections makes them essential in the oil and gas industry, chemical and petrochemical plants, marine applications, wastewater management, and power generation. They are also critical for the stringent hygiene requirements of the food processing and pharmaceutical industries.
Choosing the right stainless steel flange is a critical decision that connects engineering design with operational safety. At Rayko Steel, we are committed to being your trusted partner in this process, offering high-quality, reliable flanges and the expert guidance you need to ensure your connections are built to last.
